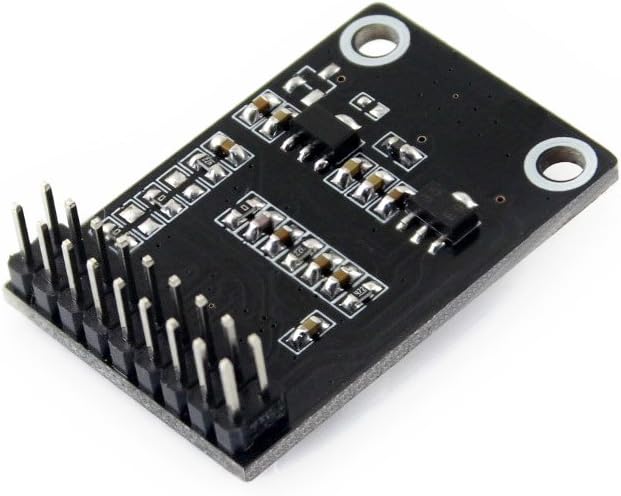

Waveshare OV5640 Camera Board (A) 5 Megapixel 2592x1944 Image Sensor Module High Sensitivity Low Crosstalk Low Noise
Product details
| Management number | 217001176 | Release Date | 2026/04/19 | List Price | $10.40 | Model Number | 217001176 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Features Pixels: 5 megapixel Resolution: 2592x1944 Sensor: OV5640 1.4um x 1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low noise Automatic image control functions: AEC, AWB, ABF, ABLC, etc. Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc. Supports image scaling, panning, windowing, etc. Lens: CCD size: 1/4inch Aperture (F): 3.0 Focal Length: 3.8mm Diagonal: 60 degree Output Formats: YUV(422/420)/YCbCr422 RGB565/555/444 CCIR656 RAW RGB Compressed Data Operating Voltage: 3.3V Control Interface: SCCB (I2C compatible) Data Interface: DVP 8-bit Dimension: 35.70mm × 23.90mm PACKAGE CONTENT OV5640 Camera Board (A) x1
- Camera Module Based on OV5640 Image Sensor, 5 Megapixel (2592x1944)
- Automatic image control functions: AEC, AWB, ABF, ABLC, etc.Supports image scaling, panning, windowing, etc.
- Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc.
- CCD size: 1/4inch.Aperture (F): 3.0.Focal Length: 3.8mm.Diagonal: 60 degree
- Output Formats:YUV(422/420)/YCbCr422,RGB565/555/444,CCIR656,RAW RGB,Compressed Data
| UPC | 614961951495 |
|---|---|
| Brand | waveshare |
| Color | OV5640 Camera Board (A) |
| Autofocus | No |
| Item Weight | 0.01 Kilograms |
| Sensor Type | OV5640 |
| Manufacturer | Waveshare |
| Video Capture Resolution | 5 megapixel |
